Sika Sika Greenstreak Flexible PVC Waterstop Dumbbell 741

The Sika Greenstreak 741 Dumbbell PVC Waterstop is an advanced concrete joint sealing solution engineered for structures demanding reliable, long-term waterproofing performance. With a 4-inch width and 3/16-inch thickness, this dumbbell profile waterstop is purpose-built for non-moving construction joints where a low-profile yet highly effective seal is required. Its compact dimensions make it an ideal choice for foundation walls, retaining walls, below-grade tunnels, water containment structures, and concrete slabs where joint movement is minimal or nonexistent.

Manufactured from high-quality virgin PVC, the 741 delivers superior flexibility, exceptional resistance to waterborne chemicals, and long-term structural durability — even in continuously wet or chemically aggressive environments. The dumbbell profile creates a mechanical interlock within the concrete, forming a secure watertight diaphragm that prevents fluid migration through construction and expansion joints. Unlike ribbed or centerbulb profiles designed for active movement joints, the dumbbell shape is specifically optimized for static joints where maintaining a tight, permanent seal is the primary objective.

Whether used in municipal water infrastructure, industrial containment basins, below-grade foundations, or civil engineering projects, the Sika Greenstreak 741 provides the performance and compliance credentials that specifiers and contractors depend on. Each 100-foot roll offers excellent coverage and installation efficiency, reducing material waste and simplifying job site logistics on large-scale projects.

Key Features

The Sika Greenstreak 741 is constructed from durable, high-quality flexible PVC, giving it the mechanical strength and elasticity needed to maintain a superior watertight seal across the full service life of a concrete structure. Its dumbbell profile is specifically engineered for non-moving concrete joints, creating a reliable mechanical interlock within the surrounding concrete that effectively prevents water infiltration in both new construction and existing structures.

From a compliance standpoint, the 741 checks every critical box. It carries NSF/ANSI Standard 61 certification, making it approved for potable water contact and suitable for use in drinking water infrastructure and municipal water systems. It also fully complies with the Army Corps of Engineers PVC Waterstop Specification CRD-C 572-74, meeting the rigorous physical property requirements demanded by federal and civil construction projects.

Built to perform in harsh conditions, the 741 offers excellent resistance to waterborne chemicals, UV exposure, and extreme temperatures — making it a dependable long-term solution in industrial, environmental, and below-grade applications. Its versatility spans a broad range of project types, including foundation walls, retaining walls, slabs-on-grade, tunnels, and culverts.

Installation is straightforward and field-proven. The 741 is heat weldable, allowing contractors to create continuous, seamless watertight barriers at transitions, corners, and intersections. When factory-fabricated fittings are used alongside proper heat welding technique, the result is a consistently high-performing waterstop system with minimal risk of joint failure.

Technical Specifications

Frequently Asked Questions

What applications is the Sika Greenstreak 741 PVC Waterstop used for? The 741 is commonly specified for a wide range of infrastructure and construction applications where permanent, watertight concrete joints are required. Typical uses include retaining walls, below-grade tunnels, bridge abutments, water treatment plants, wastewater facilities, foundation slabs, containment structures, and culverts. Its dumbbell profile makes it especially well-suited for non-moving construction joints where long-term sealing performance is the primary concern.

How is the Sika Greenstreak 741 installed? The waterstop is embedded directly into the concrete joint prior to the concrete pour, ensuring full encapsulation within the surrounding material. Split formwork is typically required to allow half of the waterstop to be positioned within the first concrete placement, with the remaining half projecting into the second pour. Proper positioning and concrete consolidation around the waterstop are critical to achieving a reliable, long-lasting watertight seal. Sika strongly recommends following the Greenstreak PVC Waterstop Installation Guide for best results.

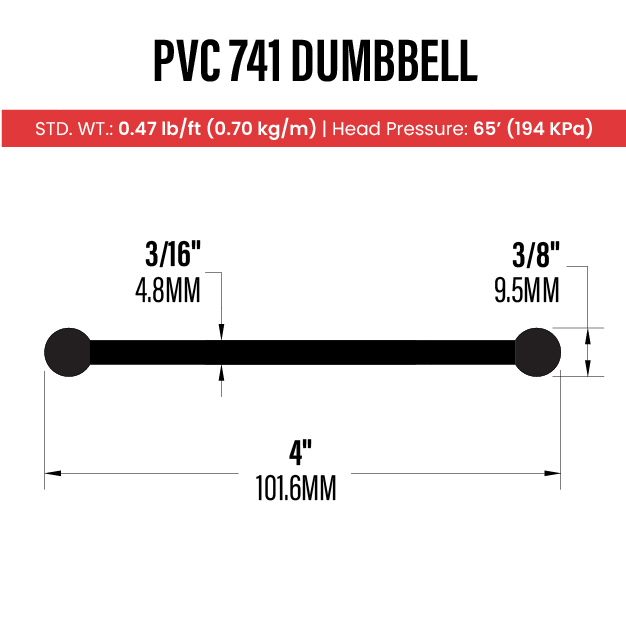

What size is the 741 waterstop? The Sika Greenstreak 741 measures 4 inches in width and 3/16 inches in thickness and is supplied in a convenient 100-foot roll. This roll length provides excellent coverage for large-scale projects while reducing the number of field splices needed, which in turn minimizes potential points of failure in the waterstop system.

Is the 741 waterstop resistant to chemicals? Yes. The 741 is manufactured from virgin PVC specifically formulated to resist a broad spectrum of waterborne chemicals. This makes it a strong choice for industrial facilities, wastewater treatment plants, chemical containment structures, and any application where the joint may be exposed to aggressive or corrosive liquids over time.

Is the Sika Greenstreak 741 approved for potable water applications? Yes. The 741 carries NSF/ANSI Standard 61 certification, confirming it is safe for contact with drinking water. This makes it an approved option for municipal water systems, water treatment infrastructure, reservoirs, and other potable water applications where material compliance is a code requirement.

What is the difference between a dumbbell profile and a ribbed centerbulb profile? The dumbbell profile is designed for non-moving or static joints, where little to no joint movement is anticipated. It creates a strong mechanical bond within the concrete without the need for a centerbulb. A ribbed centerbulb profile, by contrast, is designed for movement joints — such as expansion or contraction joints — where the centerbulb geometry accommodates lateral, transverse, and shear movement. Choosing the correct profile for your joint type is essential to long-term waterproofing performance.

Can the 741 waterstop be heat welded in the field? Yes. Like all Sika Greenstreak PVC waterstops, the 741 is heat weldable, allowing field crews to create continuous watertight seals at transitions, corners, and intersections. Sika recommends using a Greenstreak Splicing Iron for all field welds and strongly encourages the use of factory-fabricated fittings wherever possible to reduce the risk of installation errors and ensure consistent joint integrity throughout the structure.
